Name: HS52 Backscatter (2 m)

Display Field:

Type: Raster Layer

Geometry Type: null

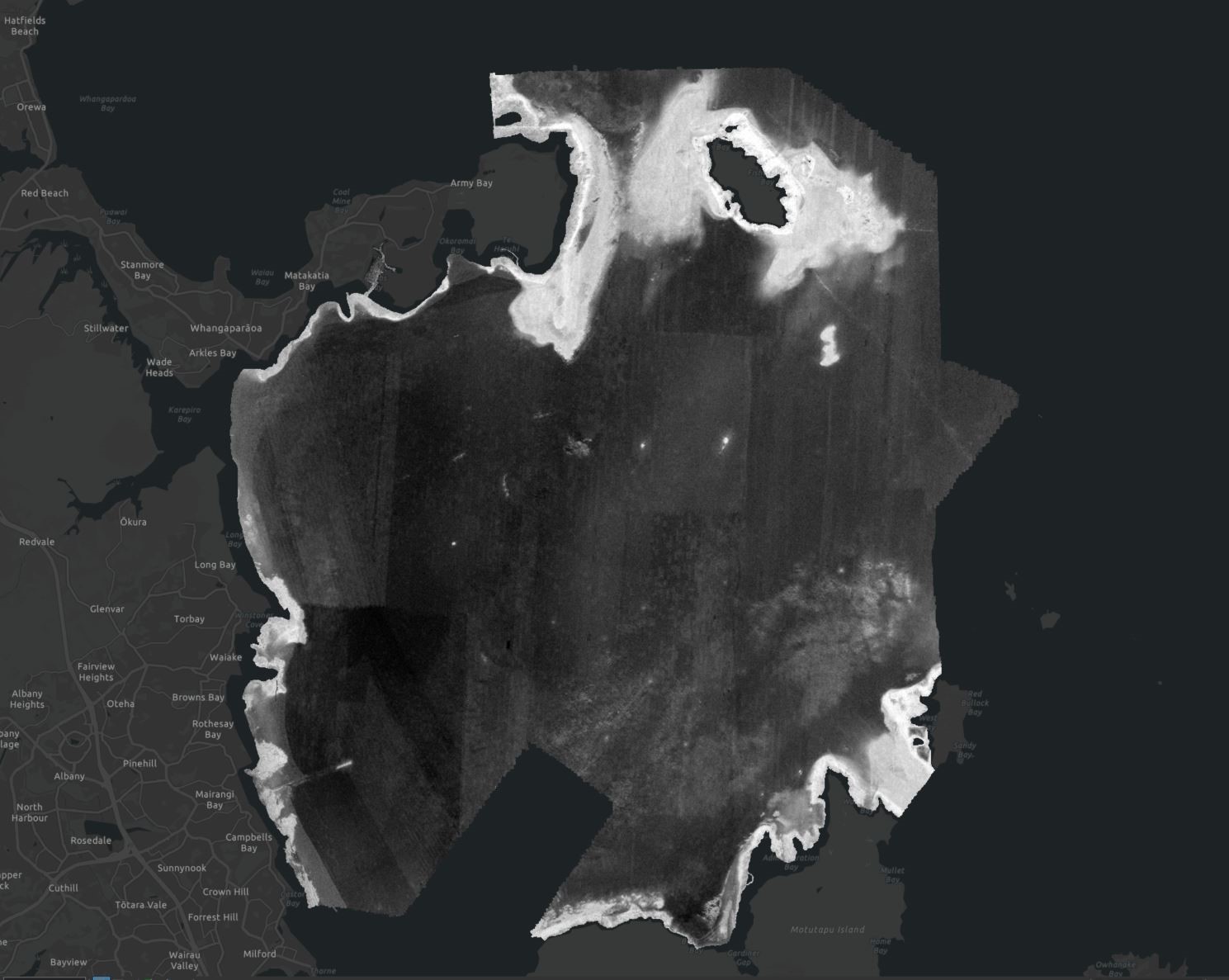

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>As a part of Benthic Terrain Modelling (BTM), the ability to constrain variations in seafloor substrate is of great benefit. During processing of multibeam bathymetry data, it may be possible to extract the strength of the return backscatter signal from isonified seafloor (in decibels), in conjunction with regular constraints of seafloor depth. These processed backscatter grids can be used to constrain relative changes in seabed substrate across the survey area.</SPAN></P><P><SPAN>As backscatter strength is directly linked to the strength of the output signal, if acquisition parameters change throughout the survey then this can have an impact on the output backscatter grid.</SPAN></P><P><SPAN>These data present a processed backscatter grid (2 m resolution) of the region surveyed during hydrographic survey HS52 - Approaches to Auckland. Survey HS52 was undertaken by Discovery Marine Limited (DML) on behalf of Land Information New Zealand (LINZ) for hydrographic charting purposes. This grid has been subsequently reprocessed by Taihoro Nukurangi - NIWA to undertake BTM analysis.</SPAN></P></DIV></DIV></DIV>

Service Item Id: e912085d68e040028ac79e245d75d7ce

Copyright Text: Survey HS52 undertaken by Discovery Marine Ltd. (DML) Raw data provided by Land Information New Zealand (LINZ) Backscatter processed by National Institute of Water and Atmospheric Research (NIWA) Data processed on behalf of Te Kaunihera o Tāmaki Makaurau / Auckland Council

Default Visibility: true

MaxRecordCount: 0

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: false

Can Modify Layer: false

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1755483.044996269
YMin: 5928020.405951584
XMax: 1778923.044996269
YMax: 5951936.405951584
Spatial Reference: 2193  (2193)  VCSWkid(115765)  LatestVCSWkid(115765)

Drawing Info:

N/A

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeNone

Type ID Field: null

Fields: None


Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
